KMC SEALED POWER CHUCKS - A TYPE MOUNTS

FEATURES:

Standard Dimensions
Replaceable with most standard chucks
High accuracy / reliability / Long life
Sealed Chuck, protects from abrasive and corrosive materials
Chucks are factory packed with grease and do not need periodic greasing, saving time and money

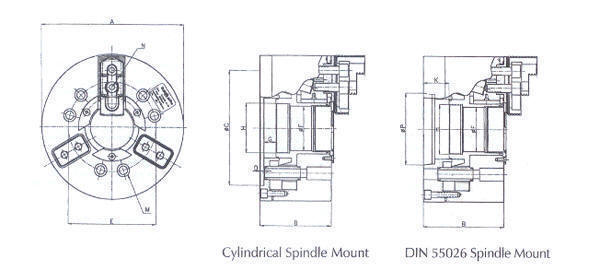

Model		 7110/24 7110/24-A3 7130/26 7130/26-A4 7152/38 7152/38-A5 7170/52 7170/52-A5 7203/56 7203/56-A6 7215/66 7215/66-A6 7254/86 7254/86-A8
ФA 110 110 130 130 152.4 152.4 170 170 203.2 203.2 215 215 254 254
B 70 79 84 91 93 103 93 103 116 120 119 122 131 134
C +0.02 85 - 110 - 120 - 140 - 170 - 170 - 220 -
D 4 - 4 - 5 - 5 - 5 - 5 - 5 -
E 70.6 70.6 82.6 82.6 104.8 104.8 104.8 104.8 133.4 133.4 133.4 133.4 171.4 171.4
ФF 24 24 26 26 38 38 52 52 56 56 66 66 86 86
G Macx 5.5 - 3 - 15 - 15 - 25 - 30 - 35 -
G Min -6.5 - -9 - -1 - -1 - 6 - 10 - 11 -
H M32 x 1.5 M32 x 1.5 M40 x 1.5 M40 x 1.5 M46 x 1.5 M46 x 1.5 M63 x 1.5 M63 x 1.5 M68 x 1.5 M68 x 1.5 M74 x 1.5 M74 x 1.5 M94 x 1.5 M94 x .15
K Max - 18.5 - 25 - 30 - 31 - 34 - 39 - 44
K Min - 6.5 - 13 - 14 - 15 - 15 - 20 - 20
M 3-M10 3-M10 3-M10 3-M10 6-M10 6-M10 6-M10 6-M10 6-M12 6-M12 6-M12 6-M12 6-M16 6-M16
N 6-M8 6-M8 6-M8 6-M8 6-M8 6-M8 6-M8 6-M8 6-M12 6-M12 6-M12 6-M12 6-M12 6-M12
P - 53.975 - 63.513 - 82.557 - 82.557 - 106.377 - 106.377 - 139.719


Model		 7130/26 7150/38 7200/56 7215/66 7250/86
Spindle Nose
Through-hole Diam. 26 38 56 66 86
Repeatability 0.002 0.002 0.002 0.002 0.002
Jaw Stroke 6.4 7 10 10 12.4
Gripping Range
Outside Dia.
(Gripping Range)		 5-135 5-155 28-190 34-204 34-260
Inside Dia.
(Gripping Range)		 35.160 35-170 52-240 90-260 76-290
Max Pull Force (KN) 25 30 45 45 65

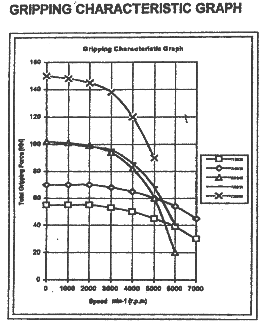

Max Gripping Force 55 70 100 100 150
Plunger Stroke (mm) 12.5 13.5 18.5 18.5 24
Matching Soft top jaws 7600 Series 7600 Series 7600 Series 7600 Series 7600 Series
Matching Hard top jaws 7500 Series 7500 Series 7500 Series 7500 Series 7500 Series
Max Speed Min (rpm) 7500 7500 6000 5500 4800
Weight kg. 7 11 20 22 40
