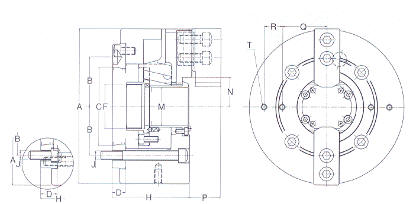

KMC CHUCKS 2-JAW WEDGE TYPE HIGH SPEED THRU HOLE CHUCKS

	KCA5-6-46-2	KCA6-8-52-2	KCA6-10-75-2	KC8-10-75-2	KCA8-12-85-2	KCA8-15-120B	KCA11-15-120-2	KCA11-18-120-2
A	6.50	8.25	10.00	10.00	12.00	15.00	15.00	18.00
B	2.06	2.62	2.62	3.37	3.37	3.37	4.62	4.62
C	A5	A6	A6	A8	A8	A8	A11	A11
D	0.86	0.68	1.20	0.98	1.18	2.36	1.37	1.37
F	M55xP1.5	M60xP1.5	M85xP2.0	M85xP2.0	M93xP2.0	M130xP2.0	M130xP2.0	M130xP2.0
H	3.54	4.09	5.05	4.84	5.31	7.48	6.49	6.49
J	4-M10	4-M12	6-M16	8-M16	6-M16	6-M20	8-M20	8-M20
M	1.81	2.04	2.95	2.95	3.34	4.72	4.72	4.72
N Max	1.27	1.55	2.04	2.04	2.36	3.12	3.12	3.12
N Min	1.16	1.40	1.87	1.87	2.18	2.90	2.90	2.90
P	1.25	1.65	1.73	1.73	2.12	2.55	2.55	2.55
Q	1.77	2.36	3.14	3.14	3.34	3.93	3.93	4.72
R	0.98	0.98	1.18	1.18	1.77	2.36	2.36	2.95
T	4-M8deep12	4-M8deep15	4-M12deep18	4-M12deep18	6-M16deep20	4-M16deep25	4-M16deep25	4-M16deep25

	KCA5-6-46-2	KCA6-8-52-2	KCA6-10-75-2	KC8-10-75-2	KCA8-12-85-2	KCA8-15-120B	KCA11-15-120-2	KCA11-18-120-2
Thru-hole	1.81	2.04	2.95	2.95	3.34	4.72	4.72	4.72
Stroke of Jaws (on Dia.)	0.22	0.29	0.35	0.35	0.35	0.44	0.44	0.44
Stroke of Piston	0.51	0.66	0.78	0.78	0.78	0.98	0.98	0.98
Chucking Diameter Max	5.84	7.44	9.00	9.00	10.80	13.50	13.50	16.19
Chucking Diameter Min	0.47	0.82	1.04	1.04	1.96	2.95	2.95	3.66
Gripping Force lbs.	7,050	11,750	16,100	16,100	20,500	26,450	26,450	26,450
Max Draw Pull lbs.	3,300	4,025	6,400	6,400	7,500	10,300	10,300	10,300
Max RPM	6,000	5,000	4,000	4,000	3,200	2,500	2,500	2,000
Weight lbs.	29	52	85	85	154	290	274	397
